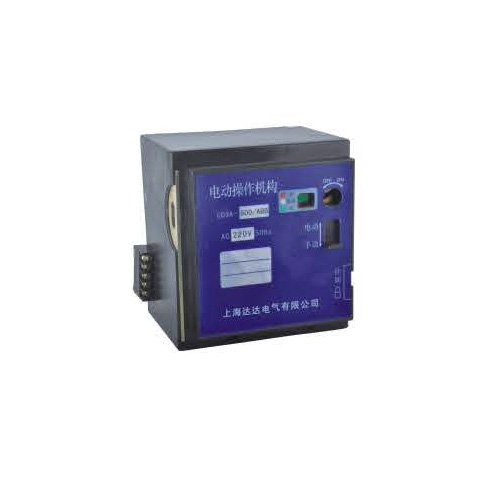

功能:
· 隔离功能提示
· 帮助断路器脱扣
· 手动或自动分合闸断路器
· 手动操作
· 将手动/自动切换到自动位置，然后转动手柄分合闸断路器
· 自动操作
· 将手动/自动切换至手动位置，然后按下按钮可远程分合闸断路器
· 接通/断开操作是通过脉冲或自动保持型
信号控制
· 操作范围: 85%UN-110%UN

Functions:
Isolation function indication;
O(breaking), 1 (making) and free tripping indication;
Free releasing of circuit breaker;
Making and breaking the breaker manually or automatically
Making and breaking the breaker manually or automatically
Manual operation
Turn "manual/auto" switch to" auto" position and then turn
the handle to make and break the breaker
Automatic operation
Turn "manual/auto" switch to" manual" position and then
Push the button to make and break the breaker remotely.
The make/break operation is carried out via pulse or
self- retaining type signal control
Operational range:85%Un-11 O%Un

主要技术参数
1 额定电压( Ue) 交流50HZ 400V , 230V直流250V
2 工作电压范围: (85%- 110%)Ue
3 承受电压: AC1800V 1min
4 电机功率: 180W左右
5 工作频率: 60 -1 20/小时
6 电寿命: 5000-10000次

Main technical parameters：
1.Rated voltage (Ue): AC 50Hz 230V, 400V;DC 250V
2.0perating voltage range:(85%-110%)Ue
3.withs tand voltage : AC 1800V 1 min
4.Motor power :About 180W
5.0perating frequency: 60- 120/h
6.Elect r ical li fe :5000- 1 0000 t imes
